HIGH QUALITY AIR PRESSURE RELIEF VENTS, BLAST PANELS, EXTRACTION UNITS, SECURITY GRILLES AND VENT ACCESSORIES

SHX-UN & SHX-UN CEI UNIVERSAL PRESSURE VENT

The SHX-UN Universal Pressure Vent’s unique design (pat applied) offers users the industry’s best solution for blast protection and gas suppression pressure relief.



SHX-UN MOT MOTORISED UNIVERSAL PRESSURE VENT

The SHX-UN MOT Motorised Pressure Vent offers all the proven features of the SHX-UN low to high pressure relief vent series. It also provides full pressure relief while closed. The SHX-UN MOT has motorised blade operation making it suitable for ventilation or multi-room cascade venting.



SHX-UN BAL AIR BALANCING SHX-UN UNIVERSAL PRESSURE VENT

The SHX-UN BAL is an air balancing vent for use in pressurised stairwells and escape routes. They are designed to help keep an escape rout



DWL DYNAMIC WEATHER LOUVRE

The DWL Exterior Dynamic Weather Louvre complements the SHX-UN universal pressure relief vents offering superior wind and weather protection. It does this without restricting the internal vents Free Vent Area (FVA). DWL provides about twice the free vent area of fixed vane weather louvres used as standard within the HVAC market. Accordingly, specifying DWL can halve the number of units needed to deliver the required performance.



DUX TWO WAY PRESSURE VENT

Superior to single top pivot solutions, the DUX is a compact, extremely robust and efficient two way pressure relief vent, and ideal for chemical gases. The DUX is the world’s first two way pressure relief vent for halocarbon gases (pat applied) and provides a level of performance not otherwise available for this application.



EXP EXPANDER BOX WEATHER LOUVRE

The EXP Exterior Louvre unit is used with AFP’s DUX range of pressure relief vents in halocarbon installations. It has been specifically designed to provide a Free Vent Area (FVA) matching that of DUX while providing the weather protection essential for two-way vents in exterior walls.



IBP INSULATED BLAST PANEL

The IBP is a light weight insulated blast panel with an IP rated 100% gas, dust and weather seal. For use with inert gas systems, electrical switchgear and transformer building protection and explosive atmosphere building protection. Ideal for extreme environments such as deserts prone to dust storms and installations in areas subject to artic temperatures.



PXW IN WALL INERT GAS EXTRACT UNIT

The PXW In Wall Inert Gas Extract range is designed to provide combined pressure relief and gas extraction for inert gas. These easy to install units offer a cost effective solution for post discharge gas extraction.

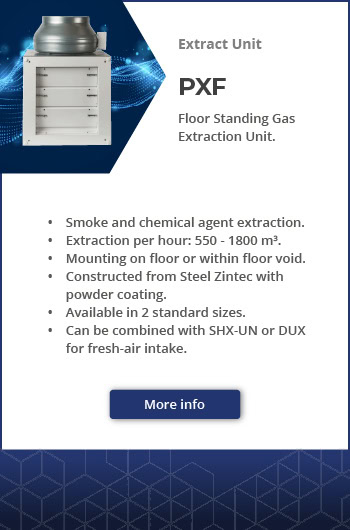

PXF FLOOR STANDING CHEMICAL GAS EXTRACT

The PXF Floor Standing Chemical Gas Extract Unit is designed predominantly for chemical gas suppression systems requiring smoke and chemical agent extraction. As the chemical gases’ mass causes them to sink, the inlet box is mounted on the floor. Or can be mounted within a floor void to maximise agent extraction efficiency. The duct can be cut to required length and installed horizontally or vertically.



SECURITY GRILLES

Light Duty Security Grille: The SG range is designed for medium protection, the standard SG range comprises 2 mm galvanised steel punched security grilles with 40 mm square apertures to match AFP pressure vent FVA. Heavy Duty Security Grille – SG HD SG HD range is constructed with 16 mm dia steel bars welded into a 6 mm steel frame, the SG HD range is built to SEAP security ratings. Anti Vandal Security Grille – SG AV SG VA range is an anti vandal grille which is fitted to the outside wall with security bolts.

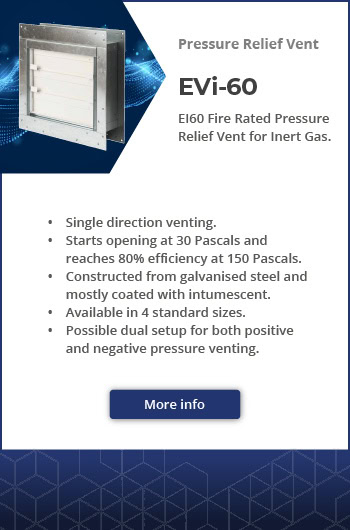

EVI-60 EI60 RATED PRESSURE RELIEF VENT

The EVi-60 Fire Insulated Pressure Vent range is another example of AFP’s industry-leading design and innovation.

The only EI60-rated vents in the world, the products have been specifically designed to provide gas suppression system pressure venting. All while conforming to EI60 insulation requirements.



Z FRAME

AFP Z Frames are stub ducts that adapt SHX UN and DUX pressure vents, and DWL external louvres, into thin walls, doors and cladding. They facilitate surface mounting of pressure vents inside containers or other thin walls, and provide weatherproof cover boxes for protruding vent bodies. Z Frames also allow neat installation of DWL Louvres onto exterior building cladding
